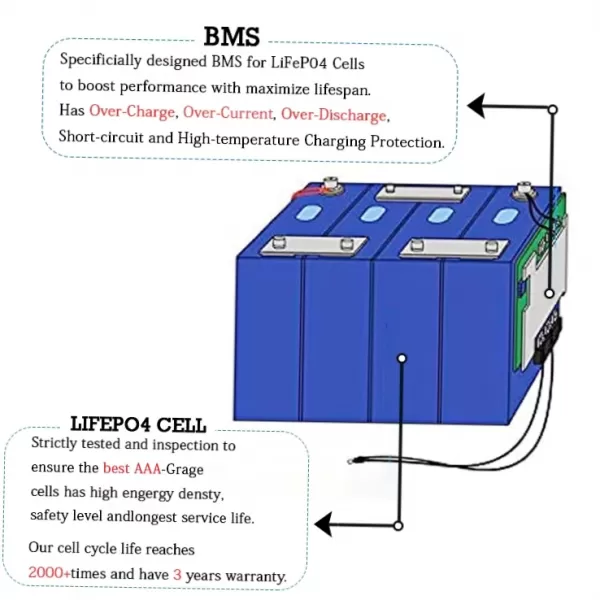

Visualized Quality 100Ah LiFePO4 Battery Internal BMS and Cell Structure

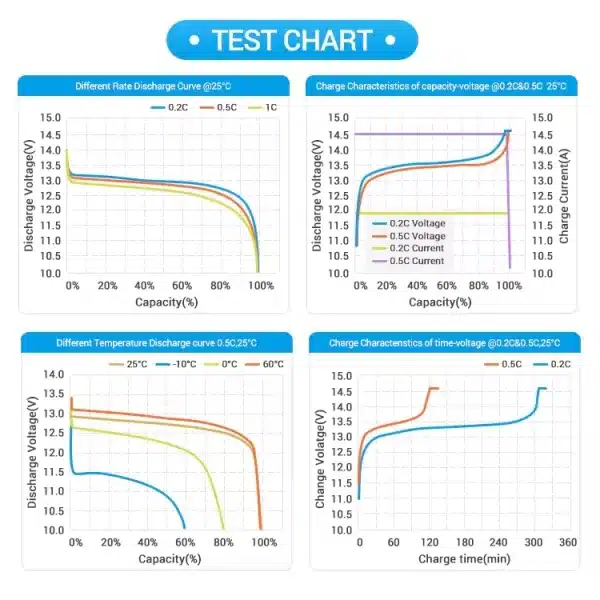

LTS Transparent Battery 100Ah Discharge and Charge Performance Test Chart

High-Performance 12V 200Ah LiFePO4 Battery for Industrial Use

High Capacity: 2560Wh of reliable power for deep cycle applications.

Smart BMS Protection: Integrated 150A/200A BMS for overcharge and thermal safety.

SLA Drop-in Replacement: Standardized 8D/4D case size for easy installation.

6000+ Cycles: Grade-A prismatic cells for long-term project reliability.

LTS 12V 200Ah LiFePO4 Battery: The Ultimate Deep Cycle Solution

The 12V 200Ah LiFePO4 Battery from LTS is designed for professional energy storage requirements. As a high-performance deep cycle lithium battery, this unit delivers stable energy for large-scale 200Ah solar battery banks and marine systems. Manufactured in our Dongguan facility, we ensure every unit meets strict quality standards.

This SLA replacement battery offers a significant weight reduction and higher energy density compared to traditional lead-acid units. For technical buyers, the LTS Battery 12V 200Ah provides the “Source Factory” reliability needed for critical off-grid infrastructure. Learn more about LiFePO4 battery technology or explore our solar energy storage battery.

Advanced Engineering of our 200Ah Solar Battery

Grade-A Prismatic Cells: Only the highest quality cells for maximum energy density.

Precision Heat Management: Internal wiring and busbars designed for high-current stability.

Technical Curve Transparency: Precise performance charts available for professional engineering review.

Technical Specifications: Deep Cycle Lithium Battery

SPECIFIC MODEL PARAMETERS

Nominal Voltage

12.8V

Nominal Capacity

200Ah

Energy

2560Wh

Dimension (LWH)

522 * 240 * 218 mm

Weight

Approx. 21.0 kg

Terminal

Cell Technology

Grade-A Lithium Iron Phosphate (LiFePO4)

Cycle Life

＞6,000 Cycles @ 0.2C 80% DOD

Integrated BMS

Over-charge, Over-discharge, Short-circuit & Thermal Protection

Charge Temperature

-20℃ to 60℃

Discharge Temperature

-20℃ to 60℃

Storage Temperature

-10℃ to 45℃

IR Rating / Case

IP65 / High-Impact ABS

Precision Factory Standards & Grade-A Cell Integration

Advanced 48-Hour Aging Test & Quality Control Process

Automated Laser Welding: We utilize high-precision laser welding to ensure ultra-low resistance connections between cells, significantly reducing heat generation during high-current discharge.
100% BMS Aging Test: Every Battery Management System undergoes a 48-hour continuous aging test to guarantee zero-defect protection and stable communication before final assembly.
Cell Matching Technology: We only use Grade A LiFePO4 cells with matched internal resistance and voltage, ensuring a consistent cycle life of 6,000+ times.
On-Site Reliability Laboratory: Our facility includes specialized testing chambers to verify the thermal stability and mechanical durability of every production batch.

Versatile Applications for the LTS Battery 12V 200Ah

Off-Grid Solar Storage: Massive capacity for home and industrial solar banks.
Premium Marine & RV: Reliable SLA replacement battery for long-distance travel.
Backup Power Systems: Consistent energy for critical fire and safety equipment.

Global Logistics for LTS Battery 12V 200Ah Series

UN38.3 Certified Packaging | DDP/CIF Global Shipping to North America, Europe, and Asia-Pacific.

UN38.3 Certified Safe Shipping for International Export

UN38.3 Certified Packaging: All batteries are secured in custom-fit shock-absorbent EPE foam and encased in heavy-duty UN-certified plywood crates to prevent any impact damage during international transit.
Anti-Static & Moisture Protection: Units are vacuum-sealed in anti-static moisture-proof bags to ensure your Lithium Battery arrives in factory-fresh condition, regardless of environmental humidity during shipping.
Flexible Shipping Terms: We provide professional DDP, CIF, and FOB services. We have extensive experience in shipping to major industrial hubs in North America (Los Angeles/New York), Europe (Hamburg/Rotterdam), and Southeast Asia.
Compliance Documentation: Full sets of MSDS, UN38.3, and Sea/Air Transport Certificates are included with every wholesale order to ensure smooth and rapid customs clearance.

Technical Support: 12V 200Ah LiFePO4 Battery FAQ

Professional insights regarding deep cycle lithium battery integration, BMS safety, and SLA replacement projects for industrial and marine use.

Why is the 12V 200Ah LiFePO4 Battery better than lead-acid?

Compared to traditional AGM or Lead-Acid, this 12V 200Ah LiFePO4 Battery offers up to 10 times the cycle life (6000+ cycles) and a 50% reduction in weight. It serves as a superior SLA replacement battery, providing a stable 12.8V output and advanced protection through an integrated smart BMS, making it the most cost-effective deep cycle lithium battery for long-term projects.

Can I use this as a 200Ah solar battery for home backup?

Yes, the LTS Battery 12V 200Ah is optimized for solar charge controllers and can be easily integrated into home energy storage banks.

What safety features are integrated into the LTS Battery 12V 200Ah?

Every unit includes a high-capacity smart BMS that protects against short circuits, over-voltage, and thermal runaway.

Does LTS provide technical support for this deep cycle lithium battery?

As a source factory, we provide full technical documentation and customized BMS configurations for bulk project inquiries worldwide.

Request a Factory-Direct Quote for Your 200Ah Project

Partner with LTS Battery for Wholesale & Engineering Support

As a dedicated source factory in Dongguan, LTS Battery provides comprehensive technical support and bulk pricing for the LTS Battery 12V 200Ah series. Whether you are managing large-scale solar projects, marine applications, or RV power systems worldwide, our engineering team offers customized BMS configurations and DDP shipping solutions to meet your specific industrial requirements.
