5kwh Rack Mount Battery
Get ready to level up your solar systems with our 5Kwh Rack Mount! It’s your perfect match for residential and commercial solar setups. Designed and assembled by LTS Battery, this sleek solution brings green energy straight to your space. Go solar, go smart, go LTS Battery!
Item | Performance |
Nominal Voltage | 48V / 51.2V |
Nominal Capacity | 100Ah |
Power | 4850Wh / 5120Wh |
Internal Resistance | ≤500mΩ |
Battery Cell | LiFePO4 Battery Cell |
Cycle Lfe | >6000 Life Cycles @0.2C 60%DOD |
Dimension | 482mm L * 430mm W * 222mm H |
Weight | 50kg |
Terminal | M8 |
BMS | 16S 100A |
Max Pulse Discharge Current (A) | 150A 1Sec. |
Max Continue Charge Current (A) | 50A |
IP Degree | IP20 |
Communication Function | RS485/CAN |
Application | Renewable Energy Storage, UPS, Home Energy Storage, Off-Grid Power System, Telecommunication |
Shipping | Packing with wooden box |

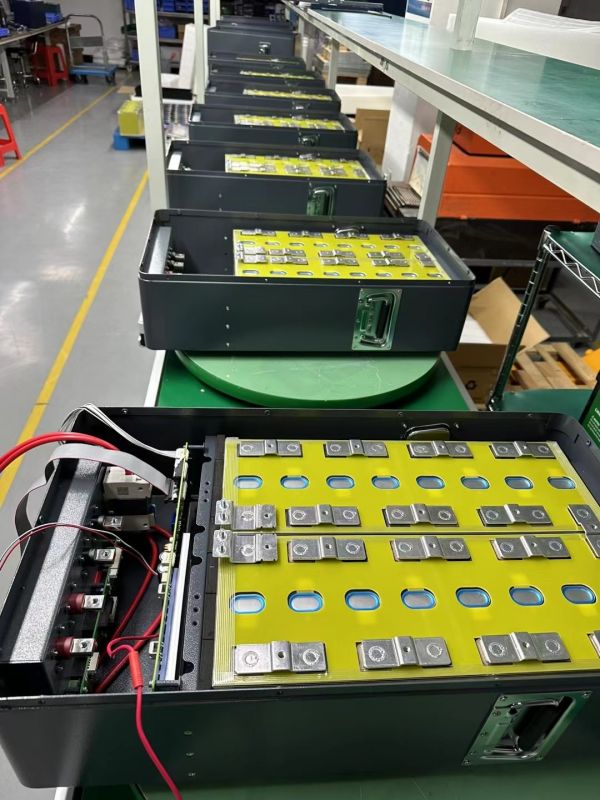

51.2V 100Ah Rack Mount Residential Solar Battery
From renewable energy storage to home energy management, off grid power system support to industrial backup power, our lithium battery plays a crucial role in different fields, providing reliable and efficient energy support.
Technical Specifications:
Rated Voltage and Capacity: voltage is 48V/51.2V, with a capacity of 100Ah, providing customers with fundamental battery parameters.
Cycle Life: 6000 cycle life times at 60% DOD, provides long term performances.
Charge and Discharge Efficiency: Emphasizing the battery’s high-efficiency charging and discharging processes reduces energy waste and enhances overall system efficiency, allowing customers to utilize energy more effectively.
Temperature Range: Detailed information on the battery’s performance under different temperature conditions ensures reliable operation in various environments, aiding customers in selecting a battery suitable for their application scenarios.
Key Features and Advantages:
High Energy Density: The high energy density, enable to provide more energy storage in compact spaces, suitable for a variety of application sizes and scenarios, offering customers greater design flexibility.
Reliability and Safety: Through the use of advanced battery management systems, we ensure the battery maintains efficient and safe operation over extended periods. This reliability is crucial for applications requiring a stable power source.
Environmental Friendliness: Eco-friendly characteristics, such as low maintenance requirements and recyclability, meeting customer demands for sustainable energy storage solutions aligned with their environmental values.
Advanced Technology: The latest energy storage technologies employed in the battery, ensuring optimal performance, stability, and a long lifespan. Customers can trust that our product is at the forefront of the industry.
